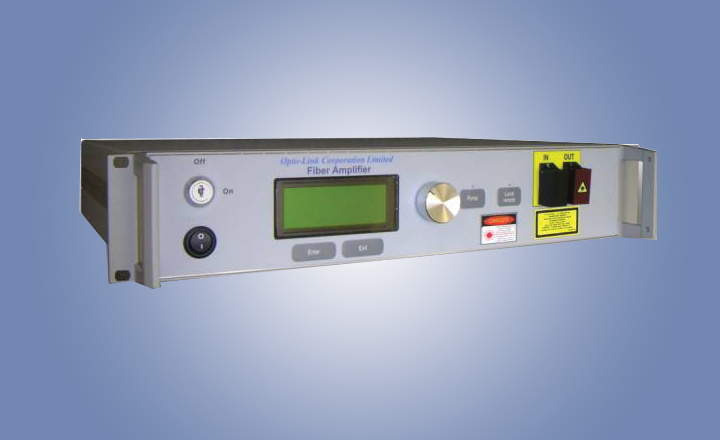

The C-Band Single Chnannel EDFA is available in bench top or rack mountable unit. This device features high output power, high gain, low power consumption and low noise figure.
-High Power Bench top Single Channel EDFA-
| Features |
| High Output power |
| High gain |
| Low noise figure |
| Applications |
| Optical networks |
| Lab applications |
| Testing |
 |
| Specifications |
| C-Band Single Channel |
| High Power C-Band Single Channel EDFA (27dBm, Booster) |
| Parameter | Specifications |
Units |
|||
| Output Power (Input Power = -3dBm) | Min. 27 |
Min. 30 | Min.33 | dBm |
 |
| Input Power | -6 to +3 |
dBm |
|||
| Noise Figure (Input Power = 0dBm) |
5.5 |
6.0 | 6.5 | dB |
|
| Operating Wavelength | 1540~1565 |
nm |
|||
| Input/Output Isolation | > 30 |
dB |
|||
| Polarization Dependent Gain |
< 0.3 |
dB |
|||
| Operation Temperature Range | 0 to +40 |
ºC |
|||
| Storage Temperature Range | -10 to +70 |
ºC |
|||
| Power Supply | 80~240, 43~63Hz |
V AC |
|||
| Dimensions |
350 x 300 x 100 for Benchtop 482 x 350 x 42 for 19" Rackmount |
mm |
|||
| Control | Keylock switch, Optical Output Power |
-- |
|||
| LCD Display | Optical Output Power,
Pump Laser Temperature |
-- |
|||
| Interface | RS232 |
-- |
|||
| Protection | Pump Laser Overheat
Warning |
-- |
|||
| Optical output connector | FC/APC,
FC/UPC, SC/APC, SC/UPC |
-- |
|||
| Fiber Type | SMF-28 |
-- |
|||
| High Power C-Band Single Channel EDFA (33dBm) |
| Parameter | Specifications |
Unit |
|
| Operating Wavelength | 1540 ~ 1565 |
nm |
|
| Saturated Output Power | 33 at Pin = -3dBm |
dBm |
|
| Optical Input Power | -15 to +5 |
dBm |
|
| Noise Figure | <6.5 |
dB |
|
| Small Signal Gain | >40 |
dB |
|
| Gain Variation | <1.5 at Pin = -3dBm |
dB |
|
| Polarization Dependent Gain | <0.5 |
dB |
|
| Polarization Mode Dispersion | <1 |
ps |
|
| Optical Isolation | >30 |
dB |
|
| Return Loss | <-40 |
dB |
|
| AC Voltage | 85 - 264 (47 to 63Hz) |
V |
|
| Power Consumptiopn | 30 ~ 100 (Depending on Output Power) |
W |
|
| Operating Case Temperature | +5 to +55 |
ºC |
|
| Storage Temperature | -40 to +75 |
ºC |
|
| Size | 160 x 260 x 380 (Bench-Top) |
mm |
|
88 x 427 x 446 (Rack Mount) |
|||
| Fiber Type | SMF-28 |
-- |
|
| Standard Connector | FC/APC |
-- |
|
| Inteface | GPIB, RS232 |
-- |
|
| Control | ACC, APC |
-- |
| For customized specification, please contact us at contact@optolinkcorp.com. |
|
| Order Codes |
OLEDFA - [Type] - [Amplifier Type] - [Wavelength] - [Output Power] - [Connector Type] |
Type |
Code |
Amplifier Type |
Code |
Wavelength |
Code |
Output Power |
Code |
Connector Type |
Code |
Bench Top |
B |
Boost Amplifier |
B |
C-band |
C |
27dBm |
27 |
FC/UPC |
FU |
Rack Mount |
R |
Line Amplifier |
L |
33dBm |
33 |
FC/APC |
FA |
||
Pre-amplifier |
P |
Others |
XX |
SC/UPC |
SU |
||||
SC/APC |
SA |
||||||||
MU/UPC |
MU |
||||||||
Others |
XX |
||||||||
* Opto-Link Corporation Ltd reserves the right to make changes to the products described herein without notice. |
|
